Plastic recycling granulating lines are used to recycle rigid PVC, HDPE, PP, PE, and other plastics. A standard complete PVC granulation line includes a crusher, washer, dryer, granulator, cooling tank, and cutter. We offer a plastic flake pelletizing line with outputs ranging from 300kg/h to 2000kg/h and all equipment can be customized.
Raw material for plastic recycling granulating line
Plastic pelletizing lines can be used to recycle plastic drums, plastic baskets, PVC pipes, lithium battery shells, home appliance shells, and other plastics made of PP PE PVC HDPE ABS.
PVC granulation line finished product display
Plastic flake pelletizing line process
Crushing
Crushing is the first step in the recycling and granulation of hard plastics. Large pieces of plastic are crushed into plastic flakes by a PVC crusher machine.
Washing
The crushed plastic chips enter the plastic washing machine through the conveyor. The washing machine plastic will remove the dirt from the hard plastic pieces.

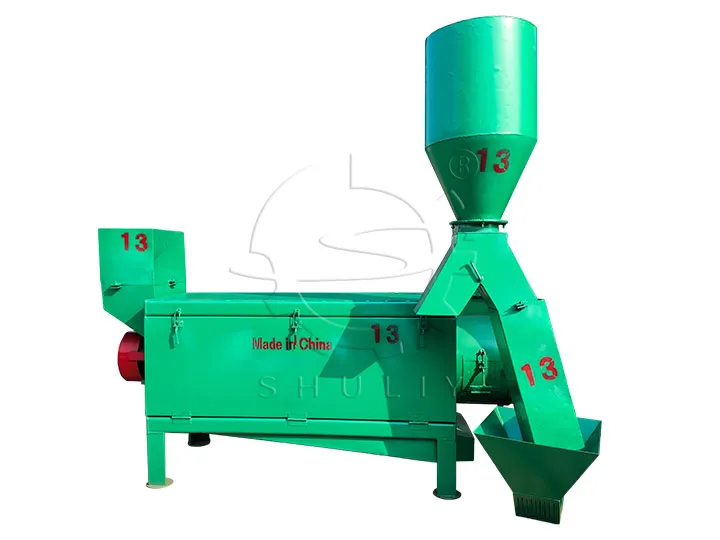

Drying
Drying is the third process in the recycling line. Excess water is removed from the cleaned plastic flakes by the dryer machine for plastic.

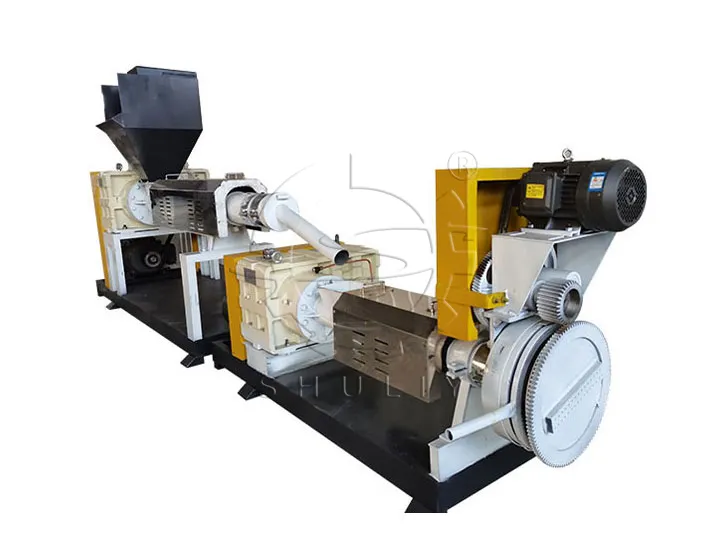

Pelletizing
Pelletizing is an important process in the recycling line. The pelletizer machine plastic heats and melts the pre-treated plastic and then extrudes it through the die head.
HDPE recycling machine FAQ
Plastic granulation needs to note what problems?
In the process of plastic granulation need to pay attention to the pretreatment of raw materials. The moisture content of the raw material should not be too much when pelletizing.
How to choose a plastic recycling granulating line?
When buying a PVC granulation line, you need to pay attention to the machine model, brand, capacity, power consumption, pelletizing quality, and other factors. You can choose the suitable plastic pelletizing equipment according to the raw materials.
What is the output of PVC pelletizing plant?
We have 200kg/h, 500kg/h, 800kg/h, 1000kg/h, 1500kg/h, and 2000kg/h plastic recycling granulating lines to choose from. Both large and small PVC pelletizing plants can find the right solution.
500kg/h PVC pelletizing plant configuration
| Name | Specification | QTY |
| PVC crusher machine | Model: SLSP-60 Power: 37kw Capacity: 600-800kg/h Knives: 10pcs Knives Material: 65Mn | 1 |
| Conveyor | Power:2.2kw Length:3m Width:350mm | 1 |
| Plastic flakes washing machine | 8m tank With chain and motor | 1 |
| Horizontal Dewatering machine | Power: 22kw | 1 |
| Plastic pelletizing machine | Host pellet making machine Model: SL-190 Power: 55kw 2.6m screw Heating method: Electromagnetic heating(60kw+80kw) Reducer: 315 hardened gear reducer Second pellet making machine Model: SL-180 Power: 22kw 1.5m screw Heating ring Reducer: 250 hardened gear reducer Screw material: 40Cr Barrel material: 45# steel | 1 |

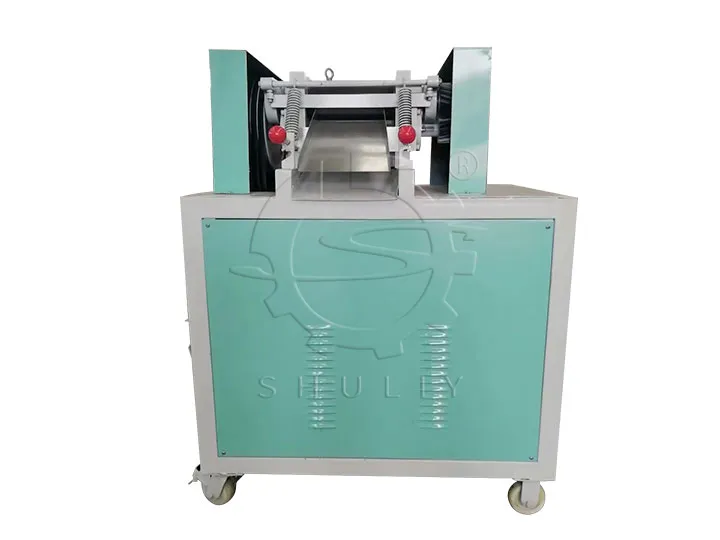

| Pellet cutting machine | Model SL-200 Power: 4kw | 1 |
Oman plastic pelletizing equipment project
A PVC pelletizing plant in Oman is dedicated to recycling lithium battery casings. We supplied them with a plastic recycling granulating line for cleaning and pelletizing lithium battery casings. By recycling and utilizing lithium battery casings, the Oman PVC pelletizing plant makes a profit and contributes to the local environment.
